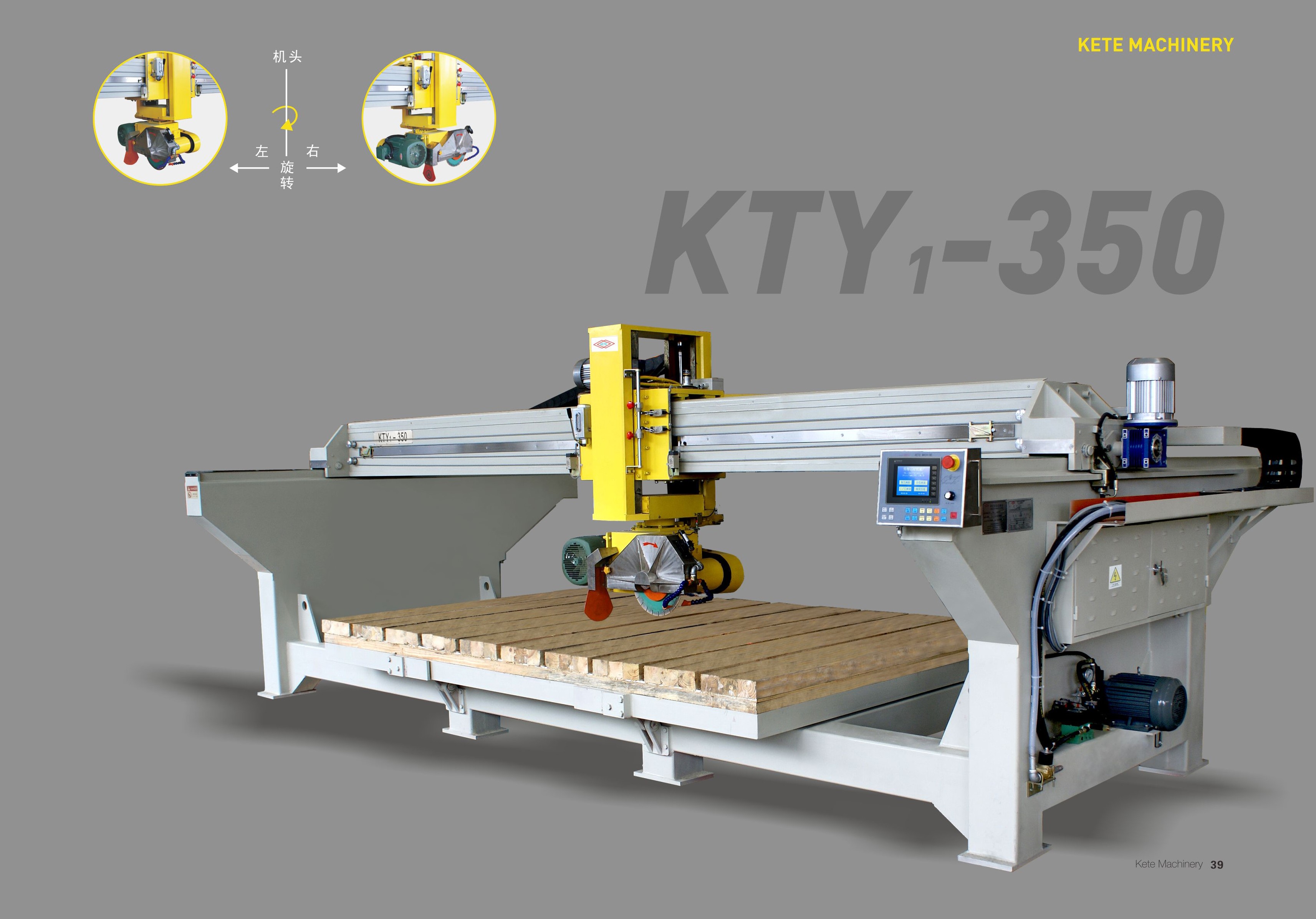

The KTY1-350 features an all-in-one structure, ensuring easy transport, installation, and precise cutting. Ideal for small workshops and mobile job sites, it eliminates the need for a concrete foundation, saving time and cost.
The KTY1-350 is designed for precise cutting of marble and granite slabs, offering a compact and integrated structure for easy transport, installation, and operation. Its all-in-one design eliminates the need for a concrete foundation, saving both time and cost. With high cutting precision and simple controls, it is especially ideal for small workshops and users who frequently change job sites.
.jpg)
.jpg)
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
| TECHNICAL PARAMETER |
| Model: KTY1-350 |
| Maximum Diameter of Sawpit |
| Ф 350~Ф 400mm |
| Maximum Processing Size |
| 3200x2000mm |
| Maximum Up-Down Travel of Cutter |
| 230mm |
| Cutting Thickness |
| 0~80mm |
| Rotation of The Cutter |
| 0/90° |
| Power of Main motor |
| 11kw |
| Machine Dimension (LxWxH) |
| 5600x3000x2200mm |
| Gross Weight |
| 4500kg |
| TECHNICAL PARAMETER |
| Model: KTY1-350 |
| Maximum Diameter of Sawpit |
| Ф 350~Ф 400mm |
| Maximum Processing Size |
| 3200x2000mm |
| Maximum Up-Down Travel of Cutter |
| 230mm |
| Cutting Thickness |
| 0~80mm |
| Rotation of The Cutter |
| 0/90° |
| Power of Main motor |
| 11kw |
| Machine Dimension (LxWxH) |
| 5600x3000x2200mm |
| Gross Weight |
| 4500kg |
