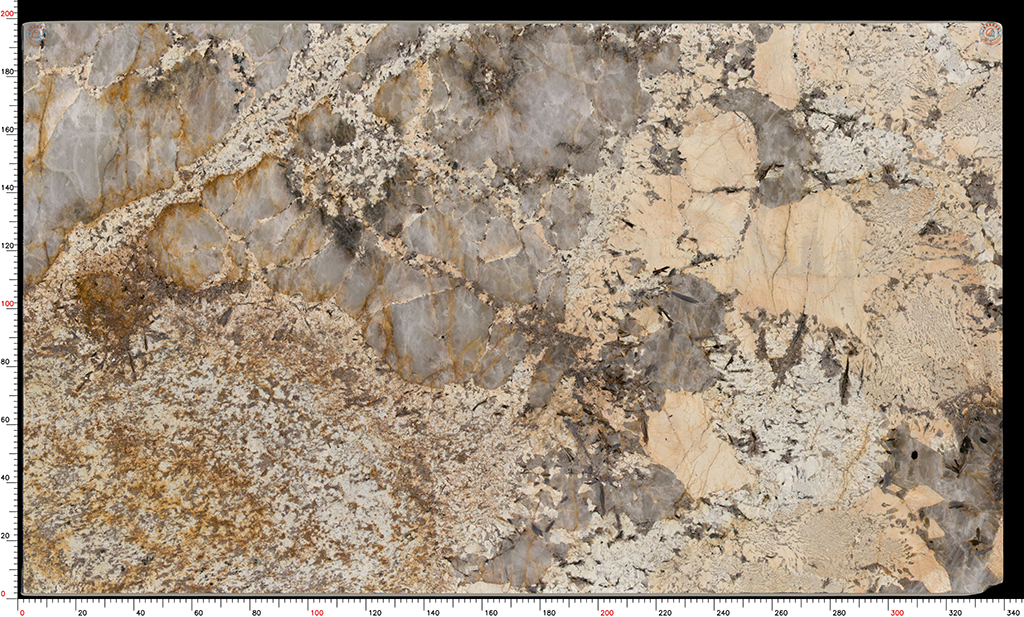

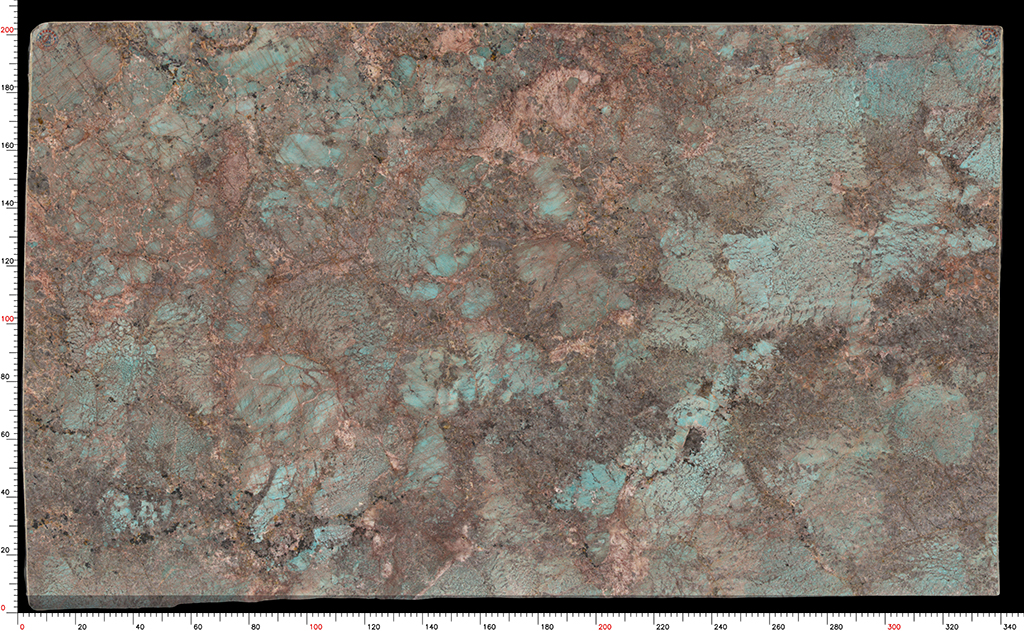

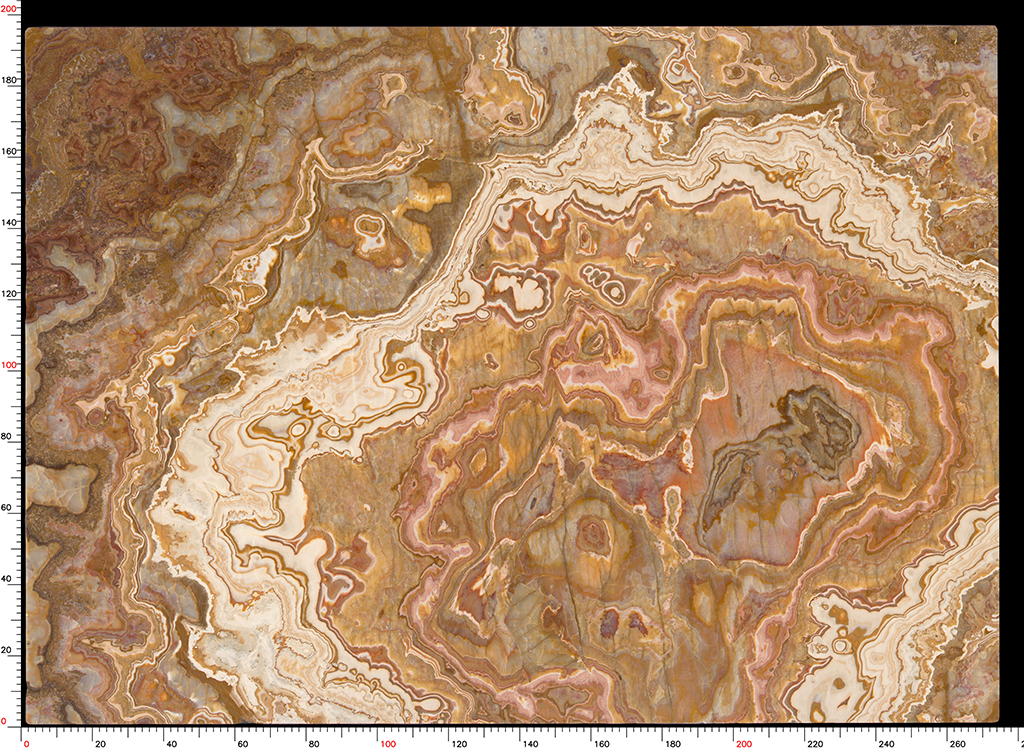

KeteScan is a versatile slab scanning system that can operate independently or seamlessly integrate with a slab polishing line for continuous, in-line image collection. The system delivers superior image quality with high definition, real color fidelity, clear textures, and accurate layouts, supporting multiple output formats to meet diverse application needs.
KeteScan is a versatile slab scanning system that can operate independently or seamlessly integrate with a slab polishing line for continuous, in-line image collection. The system delivers superior image quality with high definition, real color fidelity, clear textures, and accurate layouts, supporting multiple output formats to meet diverse application needs.
Beyond scanning, KeteScan precisely measures slab outlines, identifies the maximum inner connecting rectangle, and automatically marks defects and size deductions to optimize material utilization. All scanned images and detected data can be securely stored on the network and linked with multiple databases, providing a robust foundation for efficient and intelligent secondary stone processing.
.jpg)
| TECHNICAL PARAMETER |

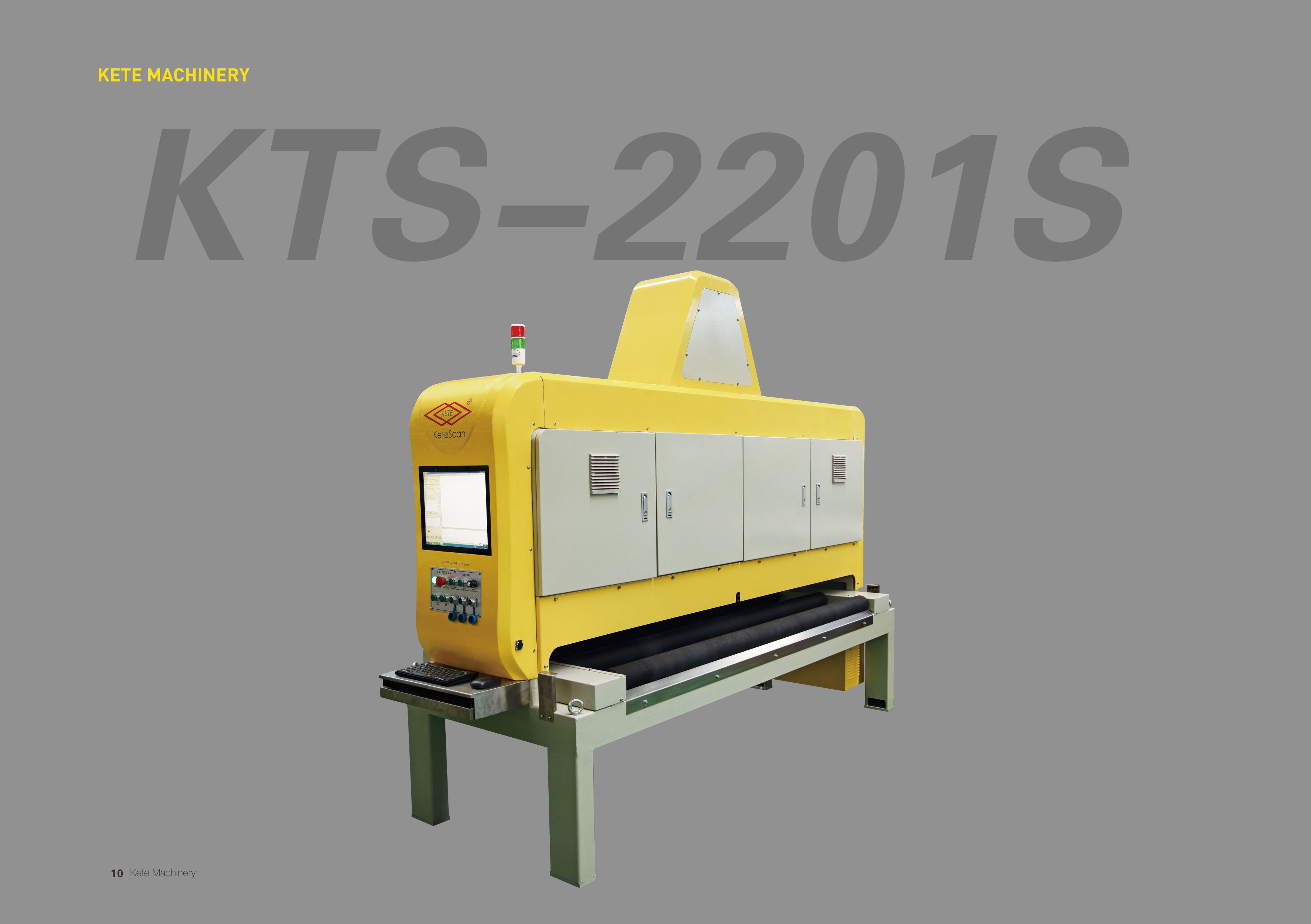

| Model: KTS-2201S Standard |
| Maximum scanning width |
| 2200mm |
| Maximum scanning length |
| 3500mm |
| Continuous scanning speed |
| 0.1~12m/min |
| Image formats |
| JPG |
| TIFF |
| RAW |
| Image resolution |
| 94 dpi |
| Power supply |
| 1.5kw |
| Machine Dimension (LxWxH) |
| 15kw + 15kw |
| Machine Dimension (LxWxH) |
| 920×2800×2350mm |
| Gross Weight |
| 800kg |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
