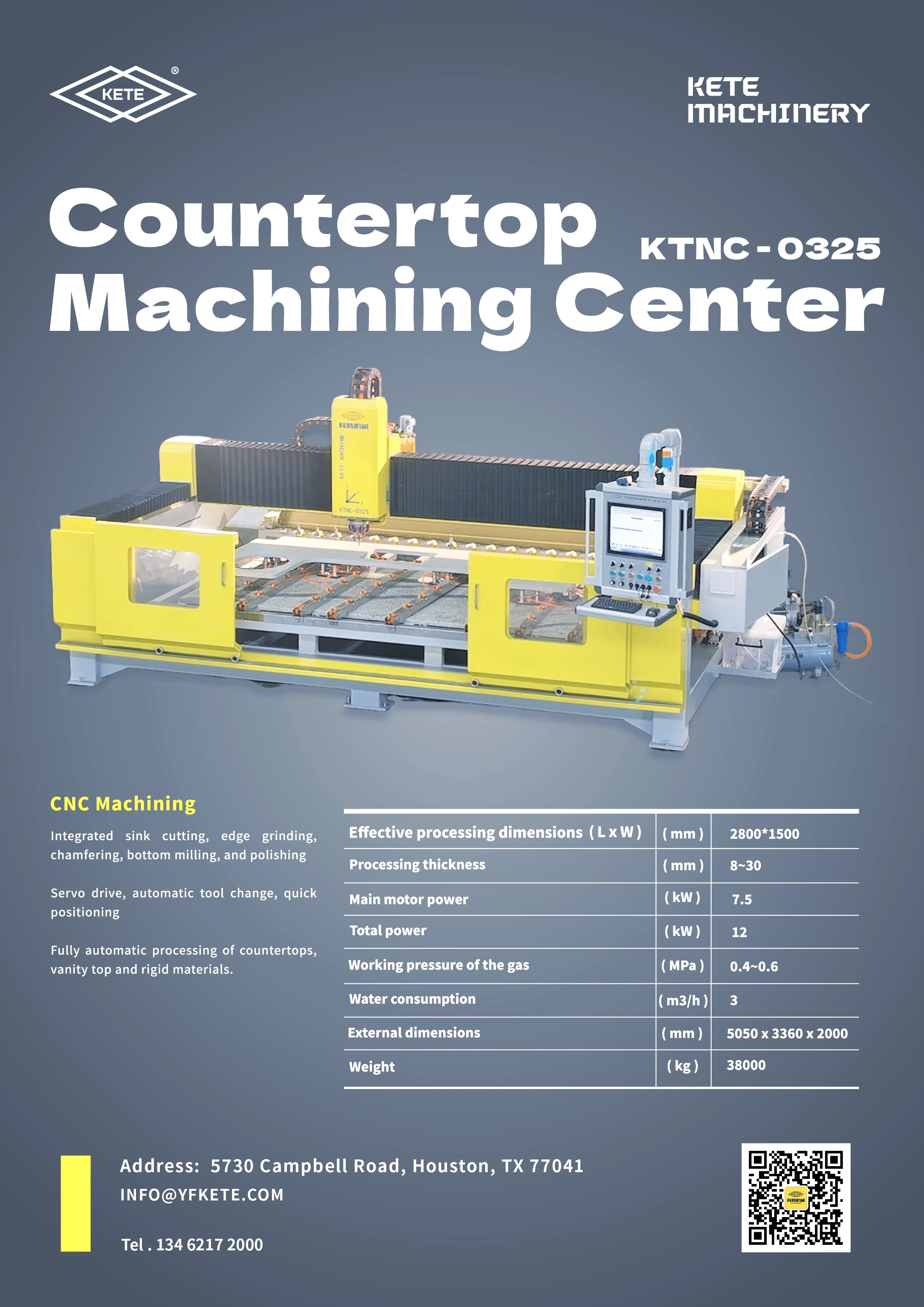

The KTNC-0325 Countertop Machining Center is a high-performance, fully automatic solution for processing countertops, vanity tops, and other rigid materials. Engineered for precision and efficiency, it integrates multiple machining operations into a single, streamlined workflow.

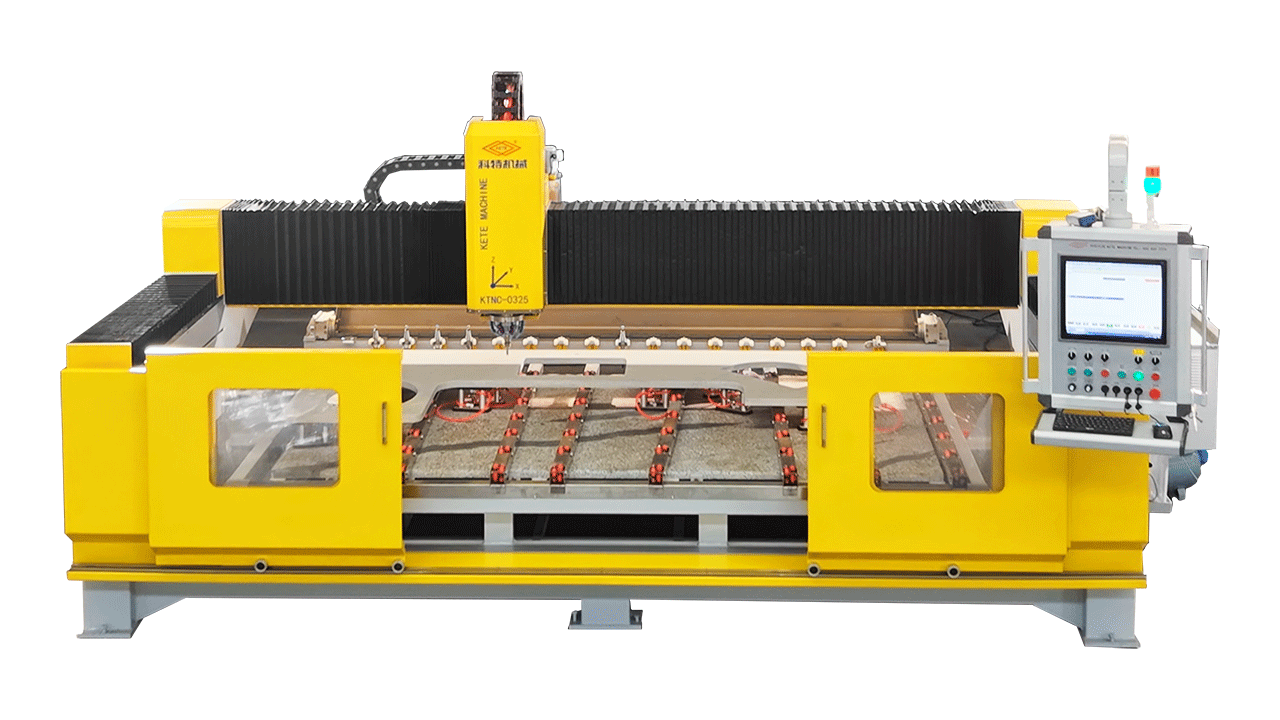

Product Introduction: KTNC-0325 Countertop Machining Center
The KTNC-0325 Countertop Machining Center is a high-performance, fully automatic solution for processing countertops, vanity tops, and other rigid materials. Engineered for precision and efficiency, it integrates multiple machining operations into a single, streamlined workflow.
Key Capabilities
· Combined processes include sink cutouts, edge grinding, chamfering, bottom milling, and polishing.
· Servo-driven system ensures accurate motion control and high reliability.
· Automatic tool change and rapid positioning reduce downtime and increase throughput.
Technical Specifications
| Parameter | Details |
|---|---|
| Effective Processing Dimensions (L x W) | 110.2" × 59.1" (2800 × 1500 mm) |
| Processing Thickness | 0.31" – 1.18" (8 – 30 mm) |
| Main Motor Power | 10 HP (7.5 kW) |
| Total Power | 16 HP (12 kW) |
| Gas Working Pressure | 58 – 87 psi (0.4 – 0.6 MPa) |
| Water Consumption | 3 m³/h |
| External Dimensions (L × W × H) | 198.8" × 132.3" × 78.7" (5050 × 3360 × 2000 mm) |
| Weight | 83,775 lbs (38,000 kg) |
