INTELLIGENT BRIDGE CUTTING MACHINE (KT-P30)

Model: KT-P30

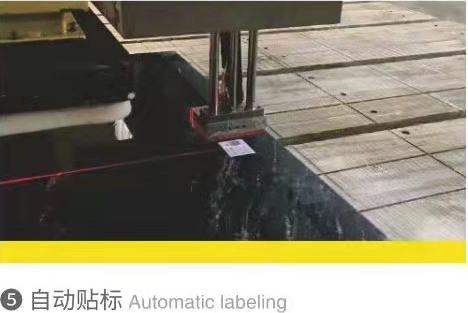

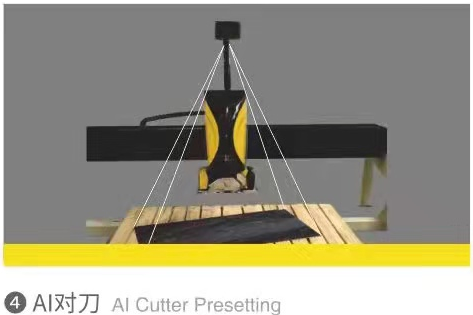

Combining the robust performance of a traditional bridge cutter with next-generation automation, the KT-P30 sets a new standard in intelligent stone processing. Equipped with AI Cutter Presetting, automatic labeling, and a sucker-assisted slab moving system, this machine streamlines production with minimal manual intervention—boosting both accuracy and throughput.

Contact Us




Combining the robust performance of a traditional bridge cutter with next-generation automation, the KT-P30 sets a new standard in intelligent stone processing. Equipped with AI Cutter Presetting, automatic labeling, and a sucker-assisted slab moving system, this machine streamlines production with minimal manual intervention—boosting both accuracy and throughput.

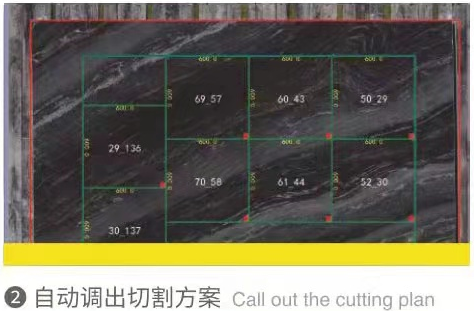

Powered by advanced design software, the KT-P30 allows operators to generate optimized cutting plans through three flexible modes:

· Automatic Optimization – Maximize yield with AI-driven material usage

· Picture Planning – Visualize and customize layouts with ease

· Artificial Planning – Apply expert manual control for specialized projects

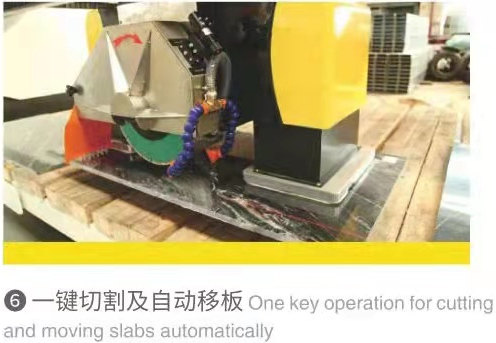

Once the plan is set, execute flawless cuts with just one-key operation. The machine automatically processes slabs according to your design, delivering consistent high-quality results while significantly reducing processing time and material waste.



Ideal for modern workshops aiming for full-scale automation, the KT-P30 enhances productivity, improves resource efficiency, and delivers precision you can trust—every time.

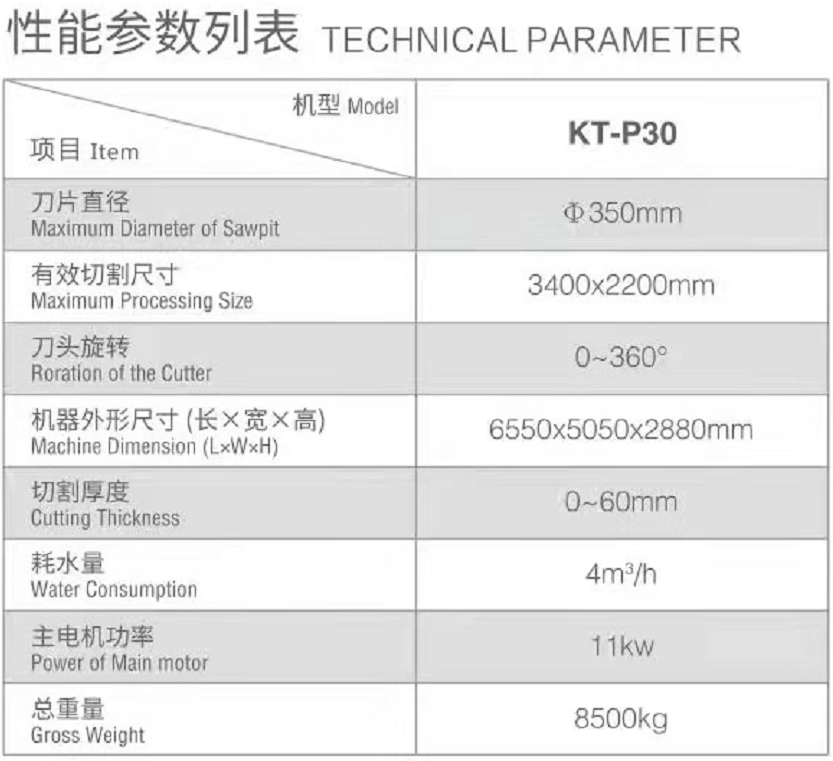

TECHNICAL PARAMETER
Model: KT-P30
Maximum Diameter of Sawblade
Φ350 mm
Maximum Cutting Size
3400×2200 mm
Cutter Head Rotation
0~360°
Air Working Pressure
0.4~0.6 MPa
Machine Dimension (L×W×H)
6550×5050×2900 mm
Cutting Thickness
0~60 mm
Water Consumption
4 m³/h
Power of Main Motor
11 kW
Total Power
19 kW
Gross Weight
8500 kg



Package & Shipping

Package: air bubble film



After-sales Service

One year warranty



FAQ

Payment terms:30% Deposit,70% Balance Payment

Delivery time:45 days after deposit payment
