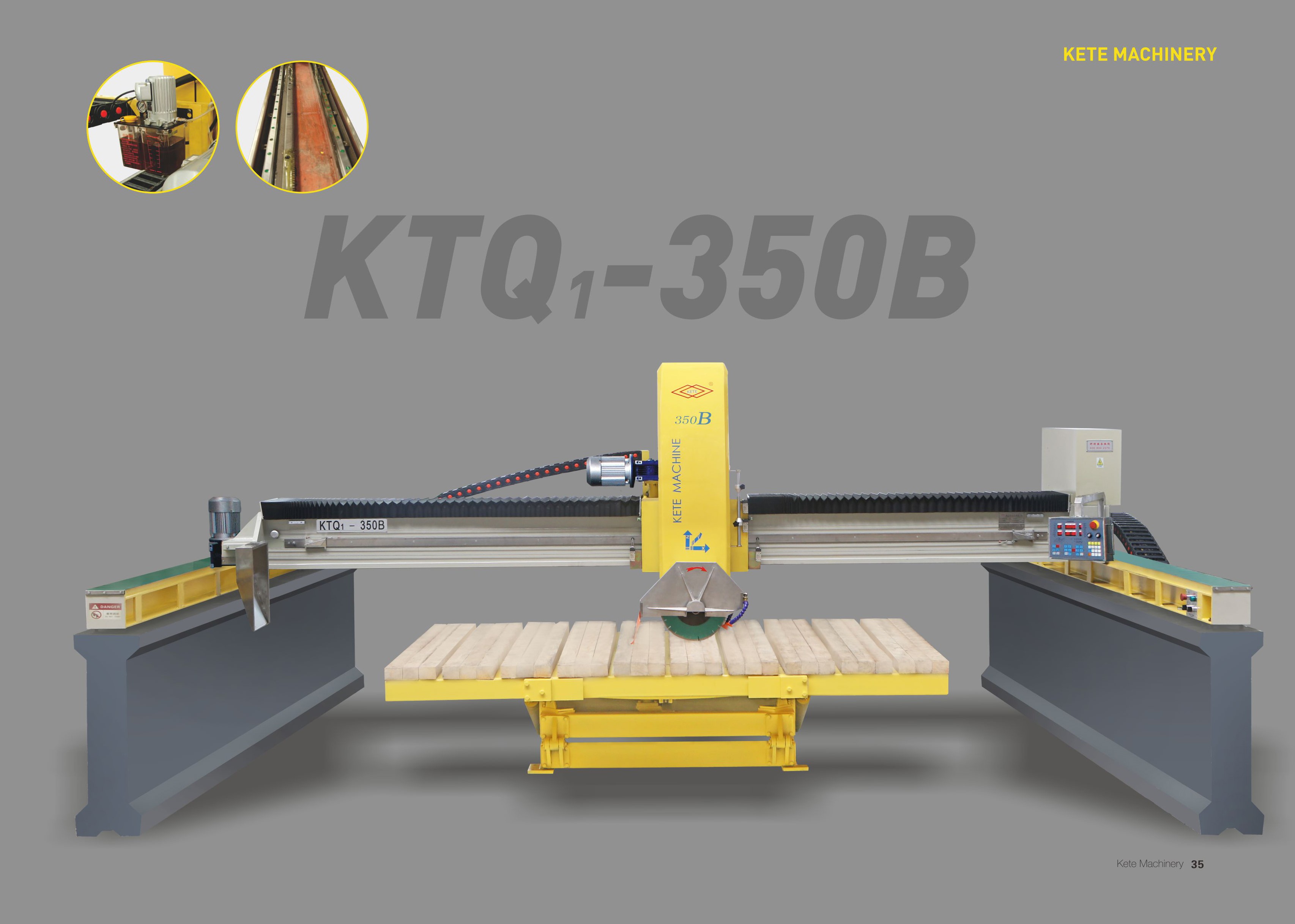

The KTQ1-350B cutting machine sets a new standard for precision and performance with its advanced linear guide system, delivering high-speed operation and exceptional accuracy. Designed for ease of use, it features an intuitive human-machine interface that simplifies control and reduces training time.
The KTQ1-350B cutting machine sets a new standard for precision and performance with its advanced linear guide system, delivering high-speed operation and exceptional accuracy. Designed for ease of use, it features an intuitive human-machine interface that simplifies control and reduces training time.
As the upgraded version of the KTQ1-350A, this model offers enhanced speed, precision, and user-friendly operation, making it the ideal choice for professionals seeking efficiency and reliability in high-performance cutting applications.
.jpg)
.jpg)
.jpg)

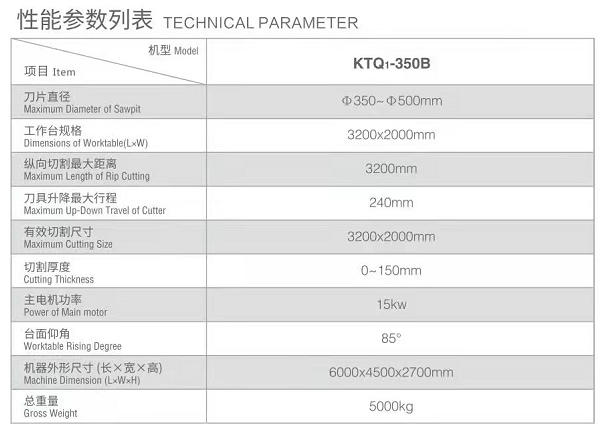

| TECHNICAL PARAMETER |
| Model: KTQ1-350B |
| Maximum Diameter of Sawblade |
| Φ350~Φ500mm |
| Dimensions of Worktable (L×W) |
| 3200×2000mm |
| Maximum Length of Rip Cutting |
| 3200mm |
| Maximum Up-Down Travel of Cutter |
| 240mm |
| Maximum Cutting Size |
| 3200×2000mm |
| Cutting Thickness |
| 0~150mm |
| Power of Main Motor |
| 15kw |

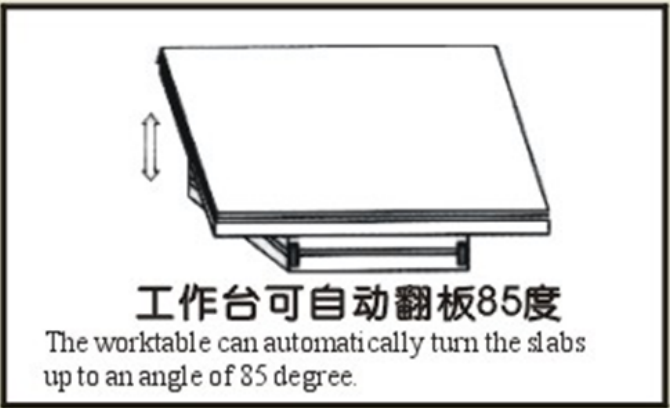

| Worktable Tilt Angle |
| 85° |
| Machine Dimension (L×W×H) |
| 6000×4500×2700mm |
| Gross Weight |
| 5000Kg |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：7 days after deposit payment
