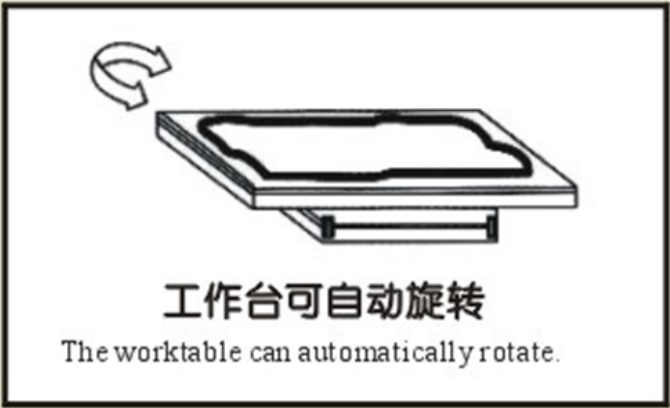

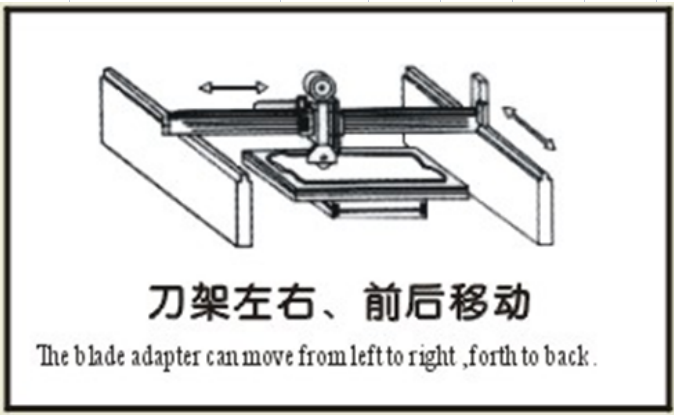

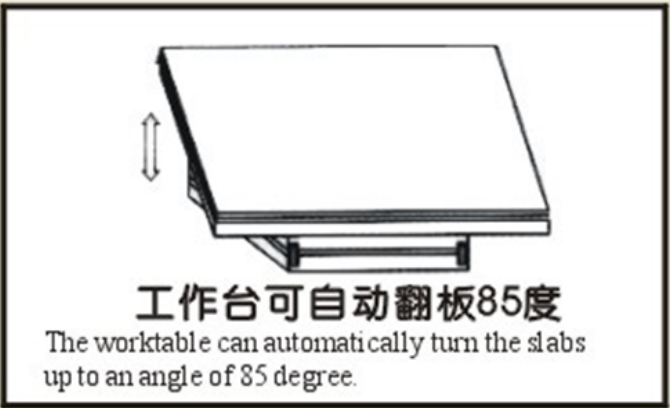

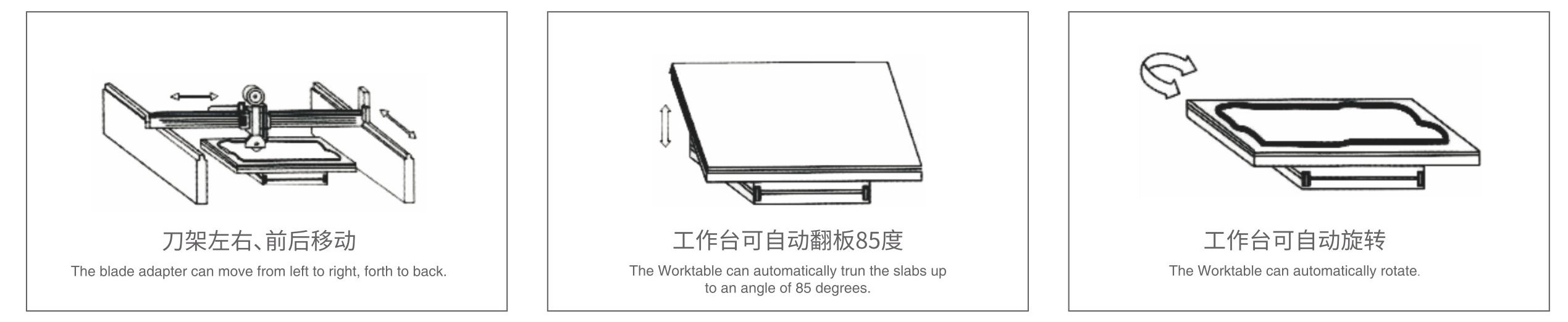

This machine has the characteristics of fast cutting speed,high accuracy and high consistence by adopting the technology of infrared guiding,magnetize ruler measure,microcomputer control and hydraulic rotation etc .Especially,it's fit for cutting of large slab and valuable slab.
This machine has the characteristics of fast cutting speed,high accuracy and high consistence by adopting the technology of infrared guiding,magnetize ruler measure,microcomputer control and hydraulic rotation etc. Especially, it's fit for cutting of large slab and valuable slab.
.jpg)
.jpg)
.jpg)

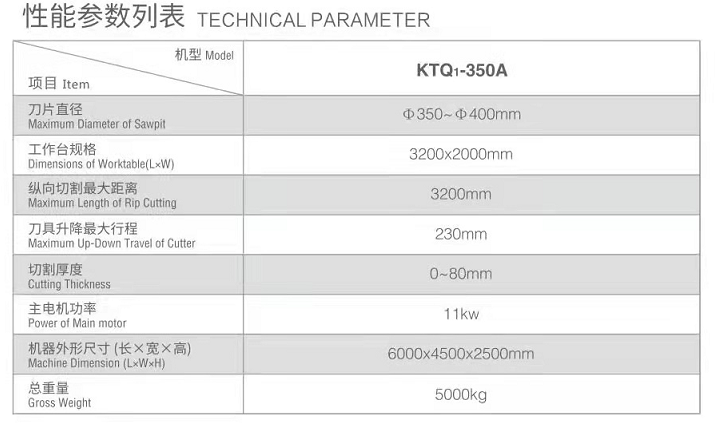

| TECHNICAL PARAMETER |

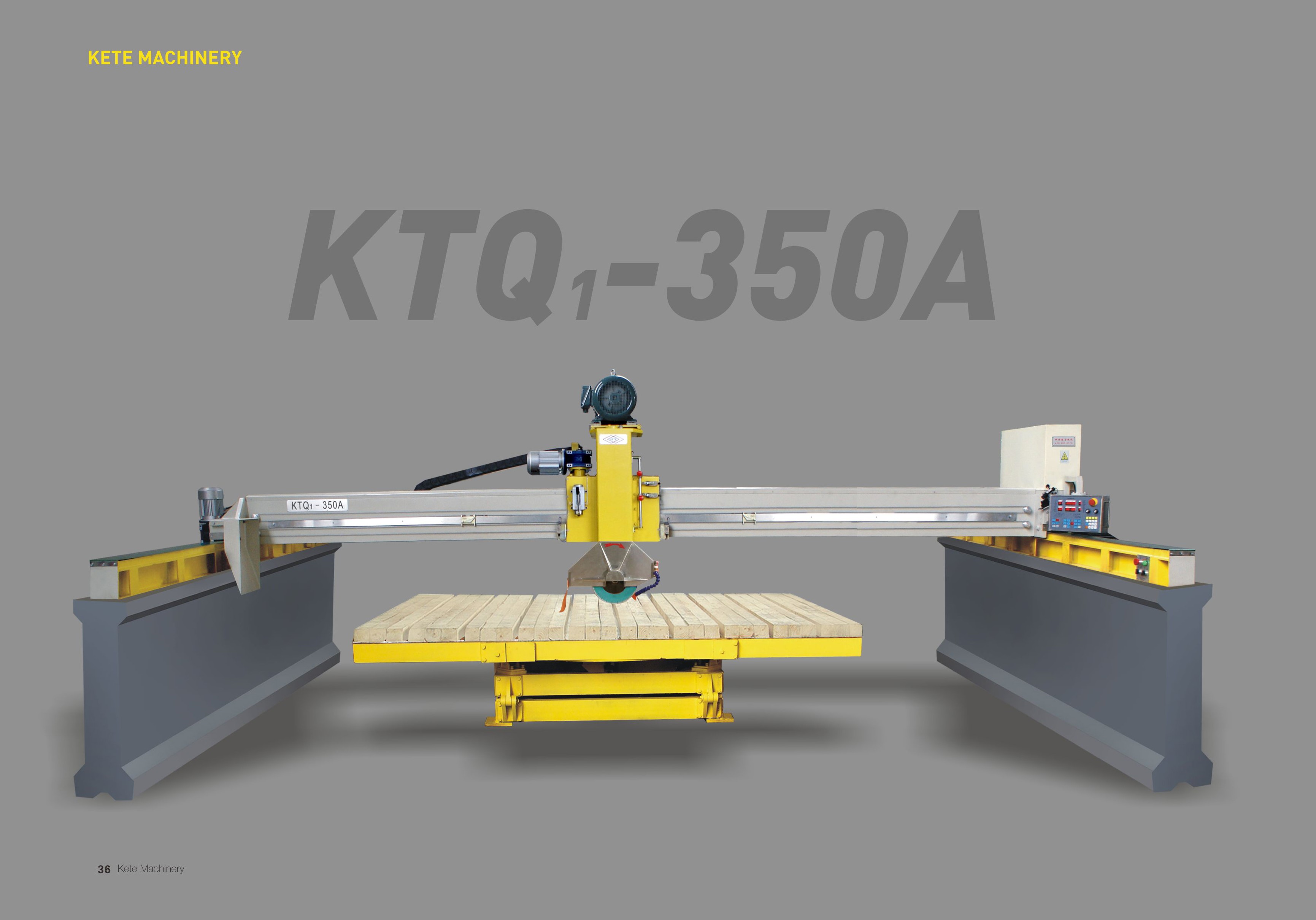

| Model: KTQ1-350A |
| Maximum Diameter of Sawblade |
| Φ350~Φ400mm |
| Dimensions of Worktable (L×W) |
| 3200×2000mm |
| Maximum Length of Rip Cutting |
| 3200mm |
| Maximum Up-Down Travel of Cutter |
| 230mm |
| Cutting Thickness |
| 0~80mm |
| Power of Main Motor |
| 11kw |
| Machine Dimension (L×W×H) |
| 6000×4500×2500mm |
| Gross Weight |
| 5000kg |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：7 days after deposit payment
